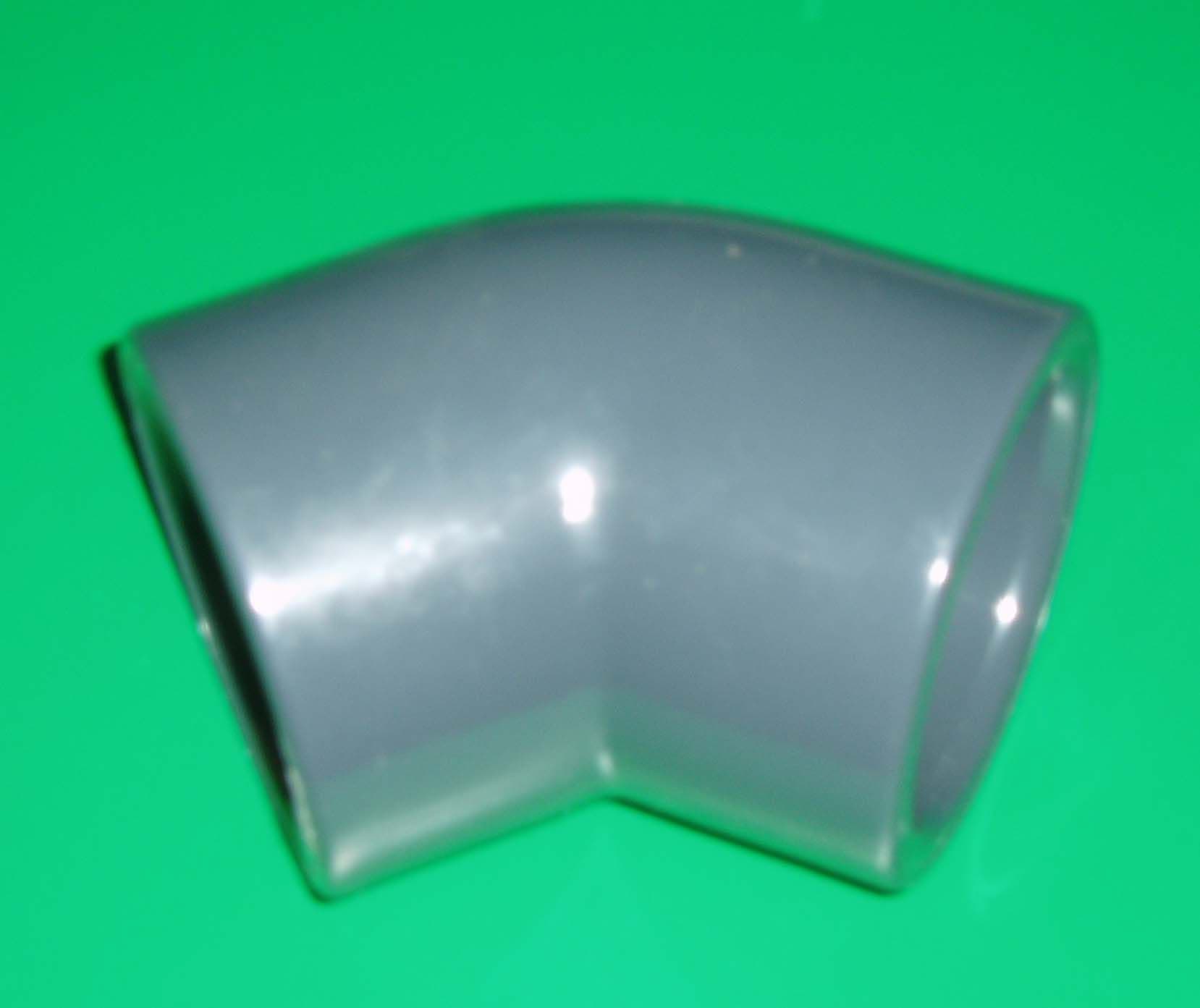

PVC Elbow 45 deg (p/p)

PVC Elbow 45 degree. Both ends Plain.

Sizes are nominal not actual and are as per British Standards. Metric sizes are also available.

Plain ends must be glued using PVC solvent cement. It is recommended to use PTFE Tape for jointing Threaded ends.

Please note Imperial (inch sizes) do not directly describe the actual size of the fitting. Please see the size chart below or contact us for more information.

Size Chart below shows the descriptive (size to order) along with the actual measured size of the inside of the fitting (which equals the outside of the pipe).

Size                        Measured (in mm)

1/2" BSP                           21

3/4" BSP                           26.4

1" BSP                              33.2

1.1/4" BSP                        41.9

1.1/2" BSP                        47.8

2" BSP                              59.6

2.1/2" BSP                        75

3" BSP                              87.9

4" BSP                              113

PVC is the most widely used plastic in pipe installations, in it's unplasticised form suitable for interior, exterior and buried pipelines. It has good chemical resistance and a high smoothness of bore which eliminates the build up of scale and gives good and constant flow characteristics throughout it's working life. It is easily jointed using suitable solvent cements or by threaded joints.

Working temperature range 0 - 60 deg C (maximum working pressures reduce at temperatures above 20 deg C). 6" and 8" also available.
